Interface |
4 x 10/100Mbps LAN ports, 1 x 10/100Mbps WAN port, 1 x USB 2.0 port |
|
Button |
WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button |
|
Antenna |
Two dual band fixed antennas |
|
External Power Supply |
12VDC /1A |
|
Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
|
Dimensions (WxDxH) |
230 x 144 x 35 mm |
|
Frequency |
2.4GHz and 5GHz |
|
Signal Rate |
5GHz: Up to 433Mbps, 2.4GHz: Up to 300Mbps |
|
Reception Sensitivity |
5GHz: 11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm, 11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm, 11n HT20: -71dBm, 11n HT40: -69dBm, 2.4GHz: 11g 54M: -76dBm, 11n HT20: -74dBm, 11n HT40: -71dBm |
|
Transmit Power |
CE: Less than 20dBm(2.4GHz), Less than 23dBm(5GHz), FCC: Less than 30dBm |
|
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
|
Wireless Security |
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
|
Quality of Services |
WMM, Bandwidth Control |
|
Management |
Access Control, Local Management, Remote Management |
|
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
|
Dynamic DNS |
DynDns, Comexe, NO-IP |
|
VPN Pass-Through |
PPTP, L2TP, IPSec |
|
Acess Control |
Parental Control, Local Management, Control, Host List, Access Schedule, Rule Management |
|
Protocol |
Supports IPv4 and IPv6 |
|
USB Sharing |
Support Samba(Storage)/ FTP Server/Media Server/Printer Server |
|
Guest Network |
2.4GHz guest network x 1, 5GHz guest network x 1 |
|
Firewall Security |
DoS, SPI Firewall, IP Address Filtering/MAC Address Filtering/Domain Filtering, IP and MAC Address Binding |
|
Certification |
CE, FCC, RoHS |
|
Package Content |

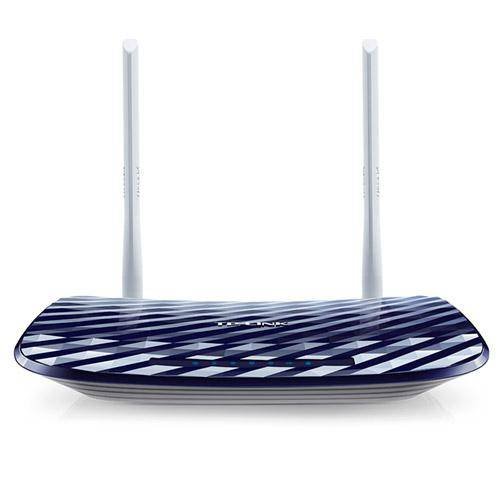

AC750 Wireless Dual Band Router Archer C20, 2 Fixed Antennas, Power Supply Unit, Resource CD, Ethernet Cable and Quick Installation Guide |
|
System Requirements |
Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system |
|
Environment |
Operating Temperature: 0 degree centigrade - 40 degree centigrade (32 degree farenheit - 104 degree farenheit), Storage Temperature: -40 degree centigrade - 70 degree centigrade (-40 degree farenheit - 158 degree farenheit), Operating Humidity: 10 Percent - 90 Percent non-condensing, Storage Humidity: 5 Percent - 90 Percent non-condensing |
|
Warranty Period |
3 Years Manufacturer Warranty |
|
Manufacturer's Name & Address |
NA |
|
Country of Origin or manufacturer |
NA |
|
Importer Name |
NA |
